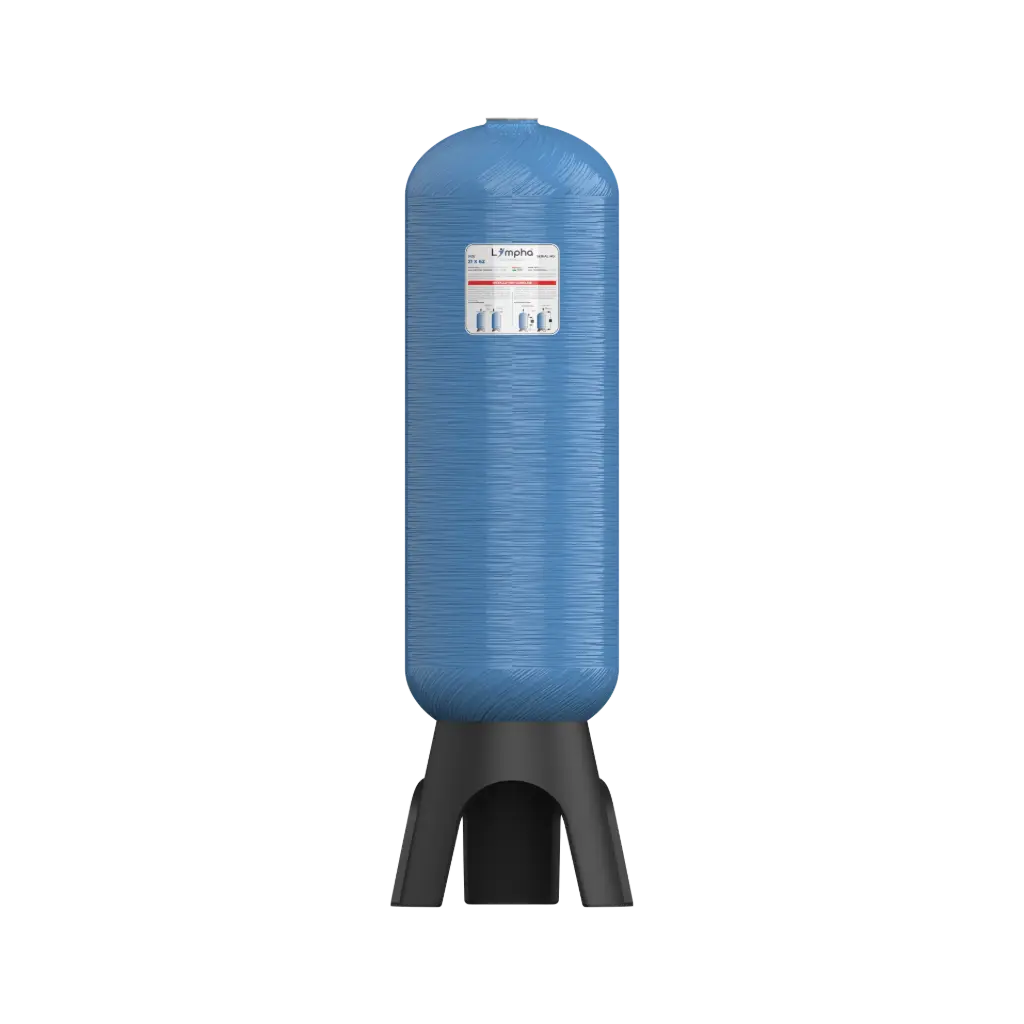

LYMPHA 2162 PRESSURE VESSEL.

Price:

₹ 24,300.00
  2. Shop
  3. LYMPHA 2162 PRESSURE VESSEL.
LYMPHA 1865 PRESSURE VESSEL
LYMPHA 1865 PRESSURE VESSEL
₹ 15,500.00
₹ 15,500.00
LYMPHA 2472 PRESSURE VESSEL.
LYMPHA 2472 PRESSURE VESSEL.
₹ 28,900.00
₹ 28,900.00

LYMPHA 2162 PRESSURE VESSEL.

https://lympha.co.in/web/image/product.template/11/image_1920?unique=8570b88
11 sold in last 24 hours

₹ 24,300.00 24300.0 INR ₹ 24,300.00 ​ ₹ 25,500.00

Not Available For Sale

6 people are viewing this right now

This combination does not exist.

This

Contact Us

Terms and Conditions
Shipping: 2-3 Business Days.







MATERIAL OF CONSTRUCTION.

  • OUTER SHELL : POLYESTER FILAMENT WOUND.
  • Inlet-outlet threaded insert standard 2½” and 4”  mounted made from High Injection Mold. Polyethylene inner shell.


OPERATING PARAMETERS.

  • Maximum operating pressure – 150PSI (10 BAR).
  • Maximum operating temperature – 120°F (49' C).
  • Designed For Maximum Negative Pressure Of 5'' Hg Vaccume Below Atmospheric Pressure.

FEATURES.

  • Inner Liner single piece seamless HDPE made from Blow Moulding ranging from 10” to 21” dia.
  • Inner Liner single piece seamless LLDPE made from Rotational Moulding ranging from 24” to 48” dia.
  • Outer shell is made of fiberglass epoxy filam​ent.

WHY LYMPHA FRP VESSEL?

  • Corrosion Resistant And Compatible For Higher Strength, Temperature & Pressure Capabilities.
  • Burst Test At 600 psi.
  • Seamless Robust Structure With Smooth Outer Finish.
Click 'Edit' to add a custom description with snippets.

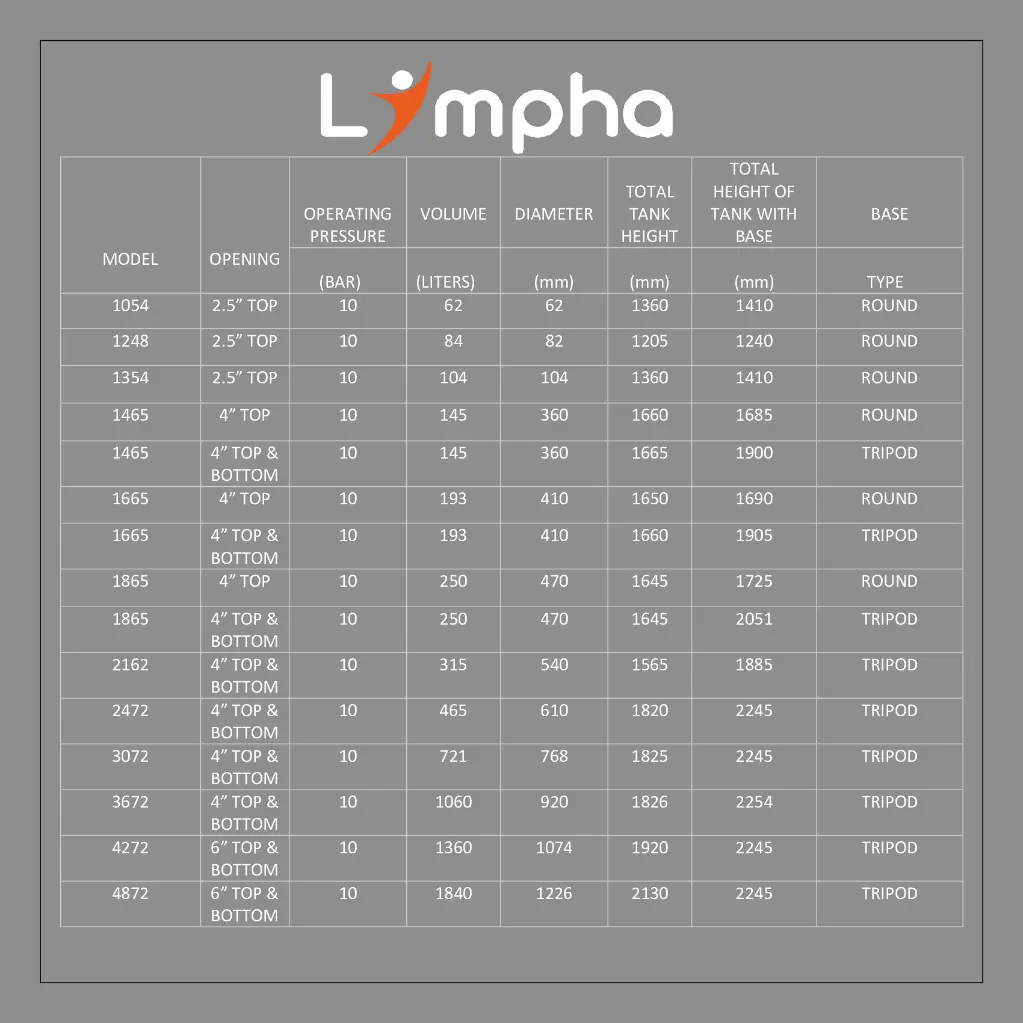

 OPENING.
  • 4" TOP & BOTTOM.
 VOLUME.​
  • 351 LTRS.
 OPERATING PRESSURE.
  • 10 BAR (10​.5 KG/CM²).
 DIMENSION (mm).
  • ​DIAMETER : 540.
  • TOTAL HEIGHT : 1885.
  BASE.
  • TRIPOD.
 MAX TEMPRATURE.
  • 49'C.
Click 'Edit' to add a custom specification with snippets.
