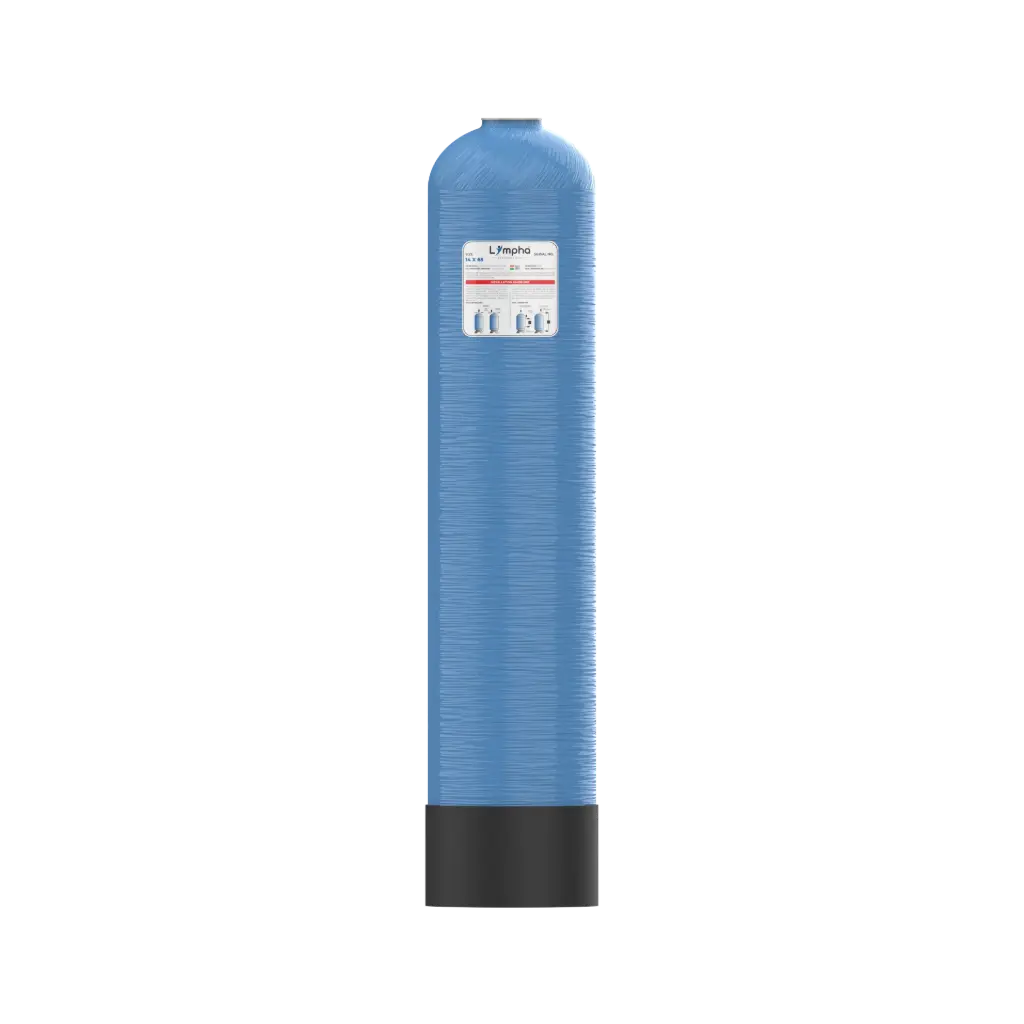

LYMPHA 1465 PRESSURE VESSEL

Price:

₹ 9,500.00
  2. Shop
  3. LYMPHA 1465 PRESSURE VESSEL
1354 FRP PRESSURE VESSEL
1354 FRP PRESSURE VESSEL
₹ 7,000.00
₹ 7,000.00
LYMPHA 1665 PRESSURE VESSELE
LYMPHA 1665 PRESSURE VESSELE
₹ 11,500.00
₹ 11,500.00

LYMPHA 1465 PRESSURE VESSEL

https://lympha.co.in/web/image/product.template/8/image_1920?unique=2d2fc11
3 sold in last 24 hours

₹ 9,500.00 9500.0 INR ₹ 9,500.00 ​ ₹ 12,500.00

Not Available For Sale

2 people are viewing this right now
  • Brand

This combination does not exist.

This

Contact Us

Terms and Conditions
Shipping: 2-3 Business Days.









MATERIAL OF CONSTRUCTION.

  • OUTER SHELL : POLYESTER FILAMENT WOUND.
  • Inlet-outlet threaded insert standard 2½” and 4”  mounted made from High Injection Mold. Polyethylene inner shell.


OPERATING PARAMETERS.

  • Maximum operating pressure – 150PSI (10 BAR).
  • Maximum operating temperature – 120°F (49' C).
  • Designed For Maximum Negative Pressure Of 5'' Hg Vaccume Below Atmospheric Pressure.

FEATURES.

  • Inner Liner single piece seamless HDPE made from Blow Moulding ranging from 10” to 21” dia.
  • Inner Liner single piece seamless LLDPE made from Rotational Moulding ranging from 24” to 48” dia.
  • Outer shell is made of fiberglass epoxy filam​ent.

WHY LYMPHA FRP VESSEL?

  • Corrosion Resistant And Compatible For Higher Strength, Temperature & Pressure Capabilities.
  • Burst Test At 600 psi.
  • Seamless Robust Structure With Smooth Outer Finish.
Click 'Edit' to add a custom description with snippets.


 OPENING.
  • 4" TOP.
 VOLUME.
  • 145 LTRS.
 OPERATING PRESSURE.
  • 10 BAR (10​.5 KG/CM²).
 DIMENSION (mm).
  • ​DIAMETER : 360.
  • TOTAL HEIGHT : 1685.
  BASE.
  • STANDARD.
 MAX TEMPRATURE.
  • 49'C.
Click 'Edit' to add a custom specification with snippets.
